INTERNAL GRINDING MACHINES RHO4: SPECIAL TRANSFER GRINDING MACHINE

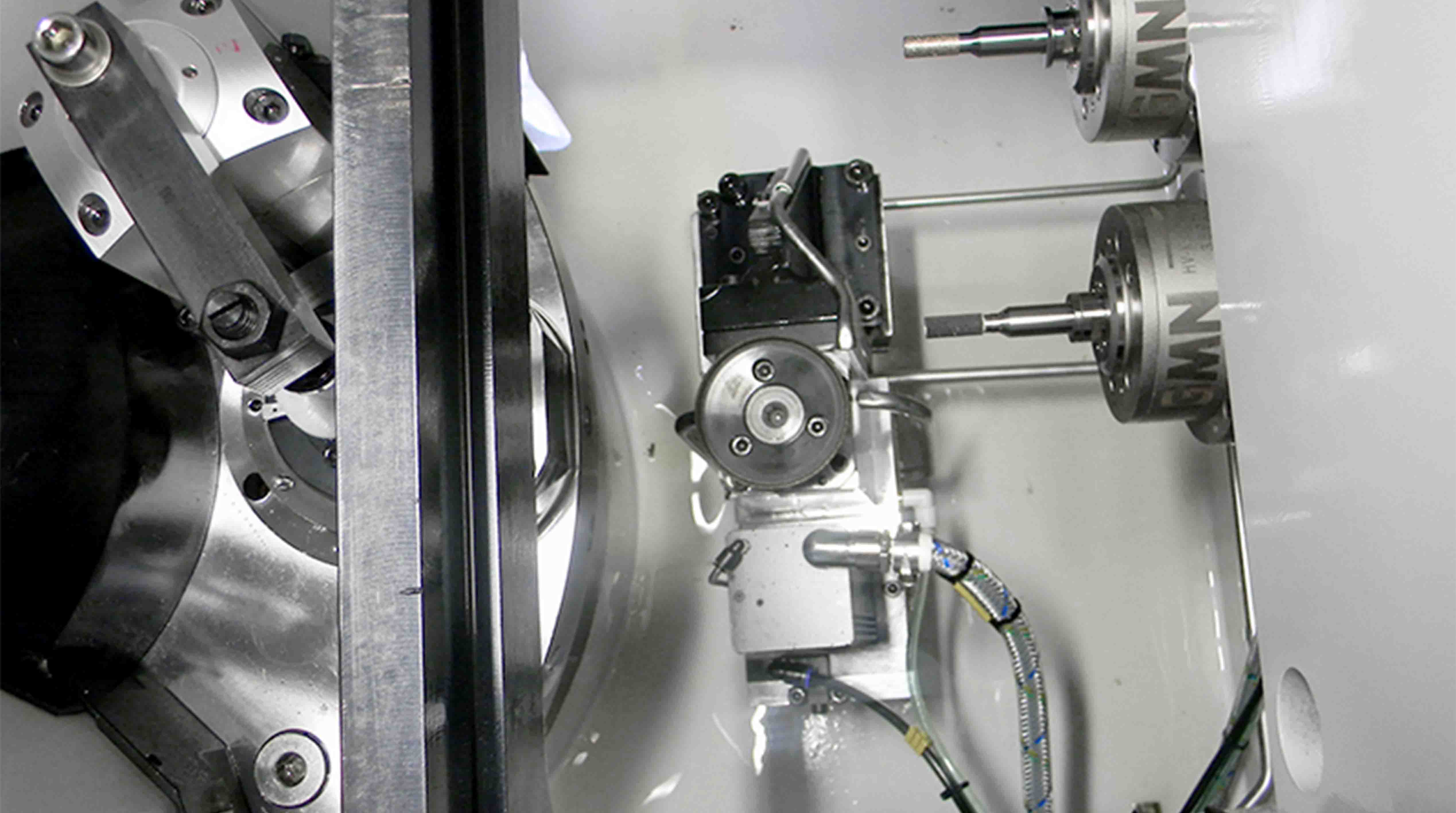

‣Two high-frequency spindle: one for rough machining and another one for finishing.
‣Diamond knurl to machine rough machining and finishing grinding wheels.
‣Special machine, with transfer philosophy and four work stations:
        - Loading station.
        - Machining-grinding station.
        - Measurement station, in which good and faulty parts are differentiated.
        - Unloading station, in which good parts are separated from faulty/out-of-proportion parts.
‣In the measurement station the state of the parts is identified and classified into:
        - Good parts.
        - Re-usable parts.
        - Faulty parts.
‣Knurl max. speed: 5,725 rpm.
‣High-frequency tool max. speed: 90,000 rpm.
